Piston Accumulator

Categories :
Contact Now
  • Description

Model Code: HXQ  210－63 / 20－G32－Y
Code: HXQ
Inside Diameter: mm
Nominal Volume: Liter
Nominal Pressure: MPa
Connection Type: Metric Thread; Imperial Thread; SAE Thread; NPT Thread; Flange connection
Working medium: Hydraulic oil: Y;   Emulsion: R;   Water: H





Sizes and Dimensions:

Series

Nom.
Pressure  MPa

Nom.
Volume        L

Max
Flow rate
L/min

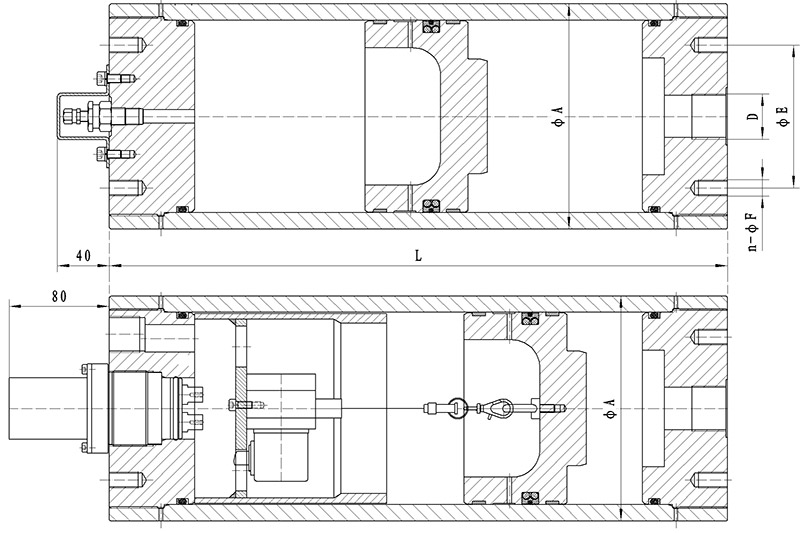

Dimension / mm

Weight
（Kg）

A

B

L

D

E

n－F

50

31.5

0.1

300

63

50

150

M27～M14
G12～G04
S12～S06
N12～N04

42

2-M6

2.8

0.16

180

3.1

0.25

220

3.5

0.32

260

3.8

0.5

350

4.6

0.75

475

5.7

1

600

6.9

60

75

0.5

300

85

60

320

M27～M14
G12～G04
S12～S06
N12～N04

52

2-M6

10

1

500

14

1.5

680

18

2

860

22

2.5

1040

26

3

1220

30

100

35

1

900

121

100

266

M42～M18
G20～G06
S20～S06
N20～N06

82

3-M12

14.5

1.6

345

16.5

2.5

460

19.5

4

650

25

6.3

945

34

140

35

4

1800

164

140

445

M60～M27
G32～G12
S32～S12
N32～N12

104

3-M12

37

6.3

595

44

10

835

55

16

1225

72

20

1485

84

25

1810

98

32

2265

119

180

35

10

3000

216

180

600

M60～M27
G32～G12
S32～S12
N32～N12

140

3-M16

89

16

835

110

20

990

123

25

1190

141

32

1465

165

40

1775

192

50

2170

227

210

35

20

3600

240

210

870

M72～M27
G32～G12
S32～S12
N32～N12

160

3-M16

130

25

1015

142

32

1215

159

40

1450

178

50

1735

202

63

2110

234

80

2600

274

250

35

40

5400

292

250

1130

M72～M27
G40～G12
S32～S12
N40～N12

180

4-M16

255

50

1340

285

63

1600

321

80

1950

371

100

2350

428

125

2860

500

150

3365

570

AMSE&PED/CE Model Codes

1.AMSE&PED/CE Model Codes

2. PED Code Piston accumulators

Table1: Thread Specification Code

CODE

Thread

CODE

Thread

CODE

Thread

CODE

Thread

M10

 M10×1

S03

3/8-24UNF

G02

 G 1/8”

N02

 N 1/8”

M12

 M12×1.5

S04

7/16-20UNF

G04

 G 1/4”

N04

 N 1/4”

M14

 M14×1.5

S05

1/2-20UNF

G06

 G 3/8”

N06

 N 3/8”

M16

 M16×1.5

S06

9/16-18UNF

G08

 G 1/2”

N08

 N 1/2”

M18

 M18×1.5

S08

3/4-16UNF

G12

 G 3/4”

N12

 N 3/4”

M22

 M22×1.5

S10

7/8-14UNF

G16

 G 1”

N16

 N 1”

M27

 M27×2

S12

1 1/16-12UNF

G20

 G 1 1/4”

N20

 N 1 1/4”

M33

 M33×2

S14

1 3/16-12UNF

G24

 G 1 1/2”

N24

 N 1 1/2”

M42

 M42×2

S16

1 5/16-12UNF

G32

 G 2”

N32

 N 2”

M48

 M48×2

S20

1 5/8-12UNF

G40

 G 2 1/2”

N40

 N 2 1/2”

M60

 M60×2

S24

1 7/8-12UNF

G48

 G 3”

N48

 N 3”

M72

 M72×2

S32

2 1/2-12UNF

M85

 M85×2

S40

3-12UNF

Code

 Flange Standard and Description

C

 SAE 3000PSI

D

 SAE 6000PSI

F

 （AVIT，HAVIT）PN320

Table2

 Codes and Sizes

A

B

C

D

E

F

G

H

J

K

L

C

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

2-1/2”

3”

3-1/2”

4”

5”

D

——

——

——

F

DN32

DN40

DN50

DN65

DN80

DN100

DN125

DN150

——

DN25

——

Notes:

1.The piston accumulator can be manufactured according to GB/T20663 standard，ASME standard and PED standard.
2.The special connection can be designed as the request of customers.
