PED/CE Code Bladder Accumulator

Model Code: BA S－50 / 330－G2－Y (219)
Code: BA
Structure: Standard(气口22mm); Standard B(气口50 mm); Top Repairable Type; High Flow Type
Nominal Volume: Liter
Nominal Pressure: Bar
Connection Type: Thread connection; Flange connection;
Working Medium: Hydraulic oil: Y: Emulsion: R; Water: H

Shell Outer Diameter(mm):

Sizes and Dimensions

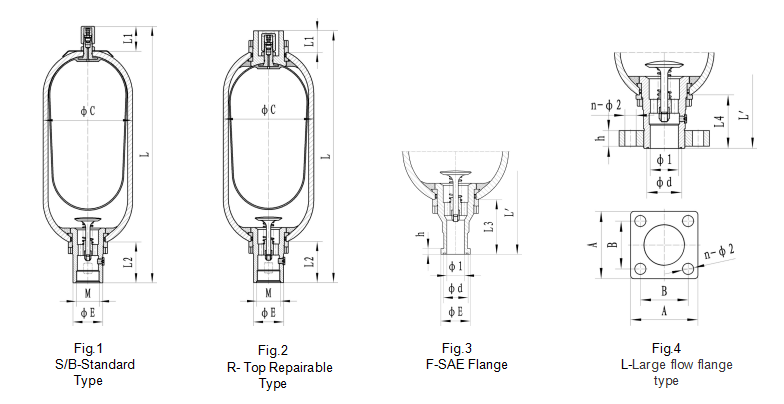

Standard Type Accumulator(Fig.1)

SIZE L	MAX. Flow rate L/min	Nom. Pressure Bar	DIMENSIONS （mm）							Weight Kg
			L		L2	ΦC	L1	E	M
			S	SB	L2	ΦC	L1	E	M
0.5	170	350	268	—	52	89	50	37	G3/4″ SAE#12 NPT3/4″	3.6
1	227	350	298	—	49	114	48	42		4.5
1.5			368	—						6
2			447	—						8
2.5			502	—						9.1
1	605	350	330	—	63	114	65	53	G11/4″	4.5
2.5			540	—						9.4
5			890	—						16.3
4	605	350	435	—	89	168	57	60	G11/4″ SAE#20 NPT11/4″	15
6	605	350	544	—	89	168	57	60		19.5
4	605	500	425	—	83	180	52	60		23
6	605	500	535	—	83	180	52	60		30
10	908	330	567	581	92	219	S 65	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	28
12			658	672						34
20			877	891						44
37			1397	1411						71
42			1532	1546			SB 79			80
50			1922	1936						100
54			2002	2016						104
10	908	330	554	568	92	229	S 65	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	36
13			654	668						40
20			860	874						52
24.5/25			1025	1039						65
32			1388	1402			SB 79			80
40			1532	1546						107
50			1918	1932						130
54			1984	1998						138
10	908	500	552	566	86	245	S 60	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	54
13			661	675						63
20			858	872						100
25			1024	1038						120
32			1391	1405			SB 74			152
40			1531	1545						168
50			1921	1935						205
54			1988	2002						220

Top Repairable Type Accumulator(Fig.2)

SIZE L	MAX. Flow rate L/min	Nom. Pressure Bar	DIMENSIONS （mm）						Weight Kg
SIZE L	MAX. Flow rate L/min	Nom. Pressure Bar	L	L2	ΦC	L1	E	M	Weight Kg
10	908	330	557	92	219	55	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	28
12			548						34
20			867						44
37			1387						71
42			1522						80
50			1912						100
54			1992						104
10	908	330	545	92	229	55	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	36
13			643						40
20			850						52
24.5/25			1015						65
32			1378						80
40			1522						107
50			1908						130
54			1973						138
10	908	500	542	86	245	50	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	54
13			651						63
20			848						100
25			1014						120
32			1381						152
40			1521						168
50			1910						205
54			1978						220
25	1500	330	770	114	299	86	96	M72×2 Flange (Fig.4)	86
40			1050						118
50			1230						139
63			1470						166
80			1810						205
100			2190						249
125			2600						274
63	2000	330	1180	140	351	90	114	G3″ M85×2 NPT 3″ -48 SAE Flange	170
80			1405						206
100			1670						250
125			2000						304
160			2460						378
180			2710						420

SAE-Flange Joint Dimensions(Fig.3)

Product Range	Pressure grade	SAE Flange Size	Q L/min	d	E	h	F	L3	L’
10L ～ 54L	3000PSI	F40	650	38	60.3	9.6	100	L2+27	L+27
	3000PSI	F50	900	45	71.5	9.6
	6000PSI	P40	650	38	63.5	12.6
	6000PSI	P50	900	45	79.4	12.6

High Flow Type Accumulator

SIZE Litre	Nom. Pressure Bar	DIMENSIONS （mm）												Weight Kg
		ΦC	M	d	Φ1	A	B	n-Φ2	h	L2	L4	L	L’
10	330	219	M72×2	80	65	155	110	4-Φ26	36	113	123		592	28
20													902	44
37													1422	71
42													1556	80
50													1946	100
54													2026	104
10	330	229	M72×2	80	65	155	110	4-Φ26	36	113	123	570	580	42
13												674	684	48
20												880	890	64
24.5/25												1050	1060	73
32												1415	1425	102
40												1548	1558	115
50												1938	1948	139
54												2008	2018	145
注 Note	L-Thread connection；Q=1500L/MIN							In the table is the weight of flange type products, Thread type weight -8Kg
	F- Flange connection；Q=1800L/MIN

Ordering Notes:

1. The nominal pressure is 330BAR, the nominal volume is 50L, the connection type is flange connection, and the hydraulic oil is used as the working medium, the outer diameter of the shell is 229, the shell structure type is large flow L-type, and the accumulator model code is marked as BAL-20/330-F-Y (229).

2. Overall length shall be more longer +10mm for G1 1/4” connection and +13mm for G2” connection.
