Model code: CQJ－10－C－2
Code Name: Pre-Charge kit
Pressure Gauges (MPa)，25（standard）10, 40, 60;
Connection to accumulator: A, B, C, D, E, T;
Hose (meter) =2m (standard)
General Description:
The pre-charge kit is used to charge or pressure for accumulator. While charging nitrogen, gas bottle pressure must be higher than the desired accumulator gas pressure. The kit can also be used in conjunction with the gas bottle or mobile nitrogen pre-charge cart.
Structure:

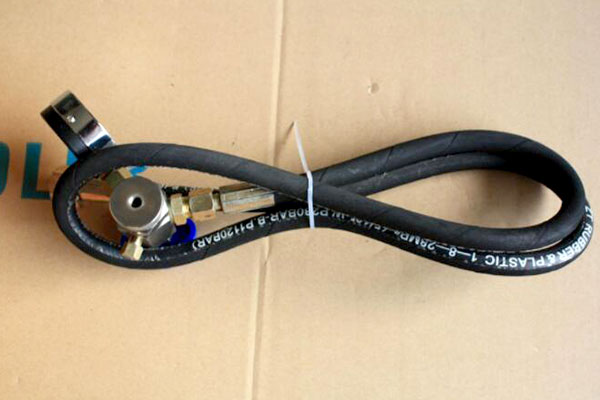

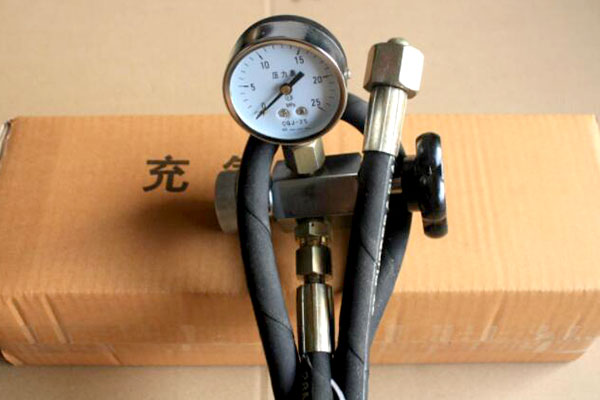

The pre-charging kit includes valve body complete with ring nut connecting to accumulator gas valve, pressure gauge, checking valve connecting valve body to hose connection, 3m high charging hose complete with connections, a set of spare gasket, pressure gauge and its packing case.
Technical specification:
|
Max. pressure |
Acc. connection (Code) |
Pressure gauges |
Applications |
|
|
10 MPa 25 MPa 40 MPa 60 MPa |
M28×1.5 |
（B） |
Φ63 ;M14×1.5 Φ63 connection ;M14×1.5 10、25、40、60MPa 任选一个，25MPa(标准) You can choose one of the three pressure gouges.Pressure gauge choice, table maximum range is 1.5~2.5 times of working pressure. |
Diaphragm Acc. |
| M14×1.5 |
（C） |
China Standard Acc. |
||
| 8V1（7.7×0.794） |
（D） |
Bladder/Piston Acc. |
||
| 5/8″－18UNF |
（E） |
Bladder Acc. |
||
| TR型（7/8″ UNF） |
（T） |
Bladder Acc. |
||

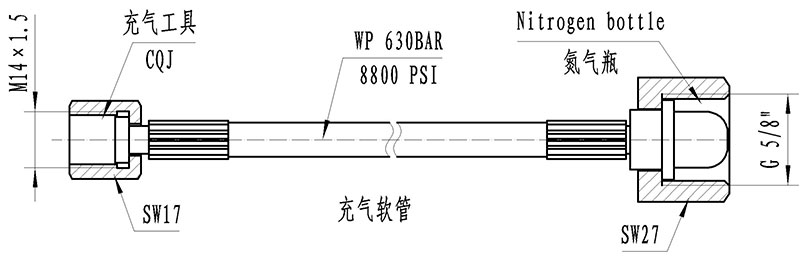

Charging Hose:

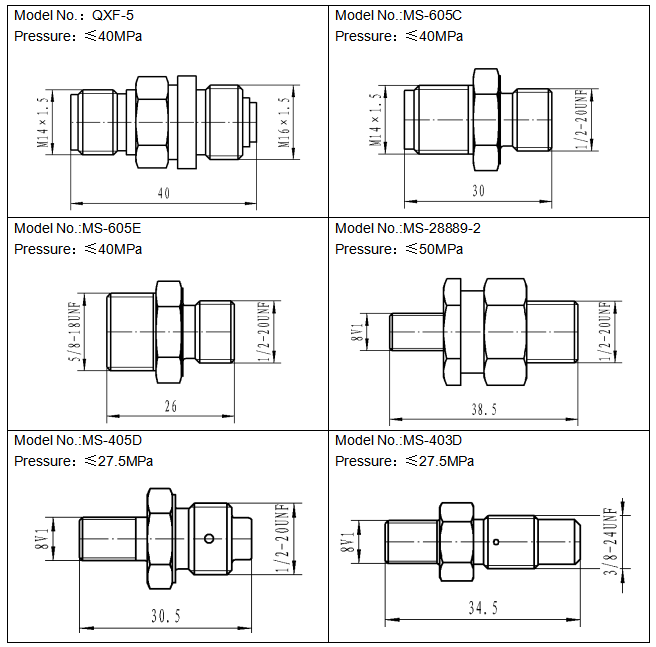

Charging Valves the charging kit can match with:
