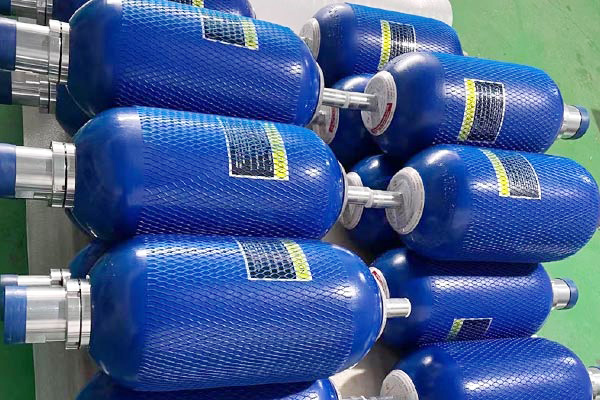

ASME Code Bladder Accumulator

Model Code: AS－S－11 / 30－L－Y－(229)
Code: AS
Structure: Standard(气口 22mm); Standard B(气口50 mm); Top Repairable; High Flow
Norminal Volume: G(gallon), Other: CI / PT / QT
Nominal Pressure: 3000psi; 5000psi; 6600psi
Connection Type: Thread connection; Flange connection
Working Medium: Hydraulic oil: Y; Emulsion: R; Water: H

Shell outer diameter(mm):

Sizes and Dimensions

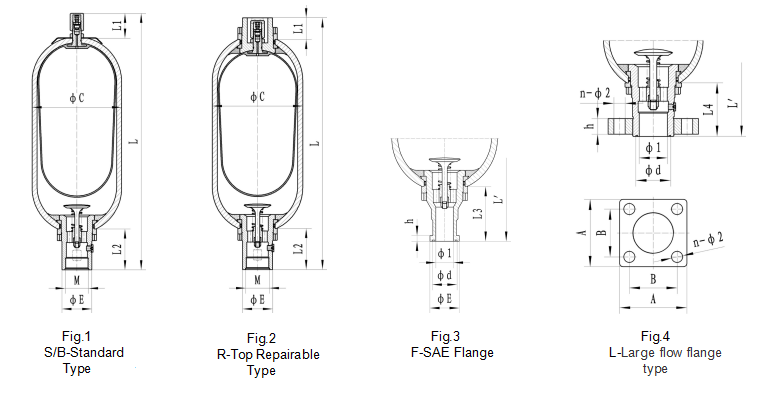

Standard Type Accumulator(Fig.1)

SIZE		Flow rate L/min	Nom. Pressure PSI	DIMENSIONS （mm）						Weight Kg
Gal	L	Flow rate L/min	Nom. Pressure PSI	L	L2	ΦC	L1	E	M	Weight Kg
1 PT	0.47	170	3000	268	52	89	50	37	G3/4″ SAE#12 NPT3/4″	3.6
1 QT	0.95	227	3000	291	49	114	48	42		4.5
1.5QT	1.5			368						6.9
150 CI	2.5			493						9.1
1.0	3.8	605	3000	435	89	168	57	60	G11/4″ SAE#20 NP11/4″	15
1.5	5.7	605	3000	544	89	168	57	60		19.5
1.0	3.8	605	5000	425	83	180	52	60		23
1.5	5.7	605	5000	535	83	180	52	60		30
2.5	10	908	3000/ 3500 APP	567	92	219	65	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	28
5	20			877						44
10	37			1397						71
11	42			1532						80
14	54			1922						100
15	57			2002						104
2.5	9.5	908	3000/ 4000 APP Stainless 1500PSI	554	92	229	65	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	34
5	18.9			865						55
10	37			1392						94
11	41			1532						105
12.5	47			1834						124
14	53			1922						130
15	57			1988						136
2.5	9.5	908	5000/ 6600APP	566	86	245	74	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	55
5	18.9			872						92
10	37			1405						156
11	41			1545						174
12.5	47			1848						209
14	53			1935						220
15	57			2005						230

Top Repairable Type Accumulator(Fig.2)

SIZE		Flow rate L/min	Nom. Pressure PSI	DIMENSIONS （mm）						Weight Kg
Gal	Litre	Flow rate L/min	Nom. Pressure PSI	L	L2	ΦC	L1	E	M	Weight Kg
2.5	9.5	908	3000/ 3500 APP	557	92	219	55	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	28
5	18.9			867						44
10	37			1387						71
11	41			1522						80
12.5	47			1822						85
14	53			1912						100
15	57			1992						104
2.5	9.5	908	3000/ 4000 APP Stainless 1500PSI	544	92	229	55	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	34
5	18.9			855						55
10	37			1382						94
11	41			1522						105
12.5	47			1824						124
14	53			1912						130
15	57			1978						136
2.5	9.5	908	5000/ 6600APP	542	86	245	50	76	G2″ NPT2″ SAE#24 M60×2 M50×1.5 F40/50 P40/50 (Fig.3)	55
5	18.9			848						92
10	37			1381						156
11	41			1521						174
12.5	47			1822						209
14	53			1910						220
15	57			1978						230
6.5	25	1500	3000/ 3600 APP	770	114	299	86	96	M72×2 Flange (Fig.4)	86
10	40			1050						118
13	50			1230						139
16	63			1470						166
20	80			1810						205
25	100			2190						249
32	125			2600						274
16	63	2000	3000/ 3600 APP	1180	140	351	90	114	G3″ M85×2 NPT 3″ -48 SAE	170
20	80			1405						206
25	100			1670						250
32	125			2000						304
40	160			2460						378
45	180			2710						420

SAE-Flange Joint Dimensions

Product Range	Pressure grade	SAE Flange Size	Q L/min	d	E	h	F	L3	L’
2.5gal ～ 15gal	3000PSI	F40	650	38	60.3	9.6	100	L2+27	L+27
	3000PSI	F50	900	45	71.5	9.6
	6000PSI	P40	650	38	63.5	12.6
	6000PSI	P50	900	45	79.4	12.6

High-Flow Type Accumulator

SIZE		Nom. Pressure PSI	DIMENSIONS （mm）												Weight Kg
Gal	Litre	Nom. Pressure PSI	ΦC	M	d	Φ1	A	B	n-Φ2	h	L2	L4	L	L’	Weight Kg
2.5	9.5	3000	229	M72×2	80	65	155	110	4-Φ26	36	113	123	570	580	42
5	18.9												880	890	64
10	37												1418	1428	102
11	41												1548	1558	115
12.5	47												1850	1860	133
14	53												1938	1948	139
15	57												2003	2013	145
2.5	9.5	6000	245	M72×2	80	65	155	110	4-Φ26	36	105	115	586	596	63
5	18.9												892	902	100
10	37												1425	1435	164
11	41												1565	1575	182
12.5	47												1860	1870	217
14	53												1950	1960	228
15	57												2022	2032	238
Note	L-Thread connection；Q=1500L/MIN								In the table is the weight of flange type products, Thread type weight -8Kg
Note	F-Flange connection；Q=1800L/MIN

Ordering Note:

1.The nominal pressure is 3000psi, the nominal volume is 11gallon, the connection type is SAE Flange connection DN50, the emulsion is used as the working medium, the outer diameter of the shell is 229, the shell structure type TR, the accumulator model code is marked as: AS-TR-11/30-F50-R(229).

2. Pressure conversion：3000PSI=20.7MPa; 5000PSI=34.5MPa; 6600PSI=45.5MPa
3. Overall length shall be more longer +10mm for G1 1/4” ; connection and +13mm for G2” connection.
4. Max Flow rate: L/min
