Technical data
▶High pressure motor for integration in mechanical gearboxes
▶Size from 28 to 355
▶Nominal pressure up to 400 bar
▶Maximum pressure up 450 bar
▶Open and closed circuits
▶High pressure motor for integration in mechanical gearboxes
▶Open and closed circuits
Features
▶ Space-saving construction due to recessed mounting flange
▶ Easy to install, simply slide into the mechanical gearbox
▶ High power density
▶ Very high total efficiency
▶ High starting efficiency
▶ Optional with integrated pressure relief valve
▶ Optional with mounted additional valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve

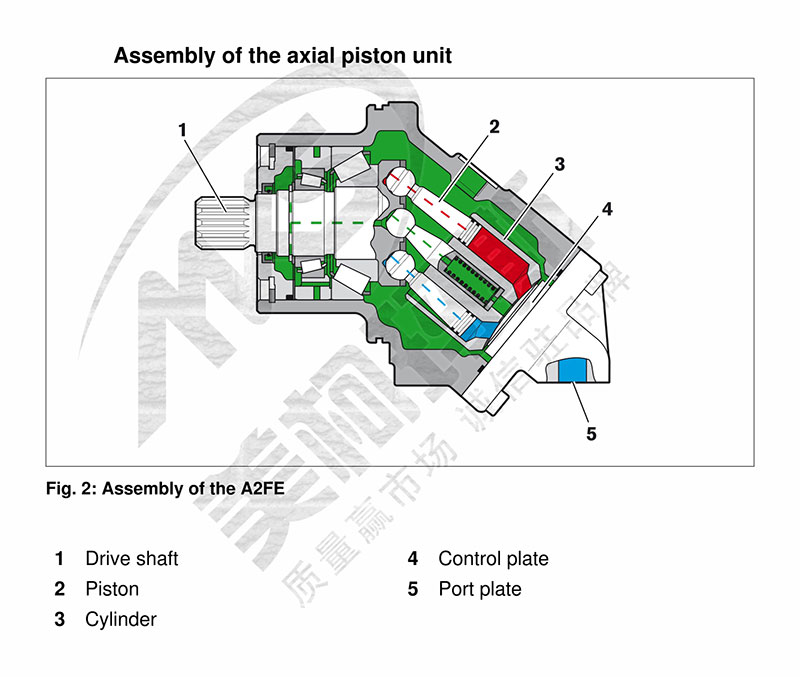

▶ Bent-axis design
