Technical data
Size 18 (A10VSO).
Sizes 28 to 140 (A10VO).
Nominal pressure 280 bar.
Maximum pressure 350 bar.
Open circuit.
Features

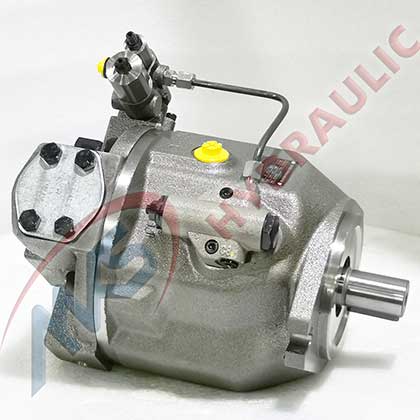

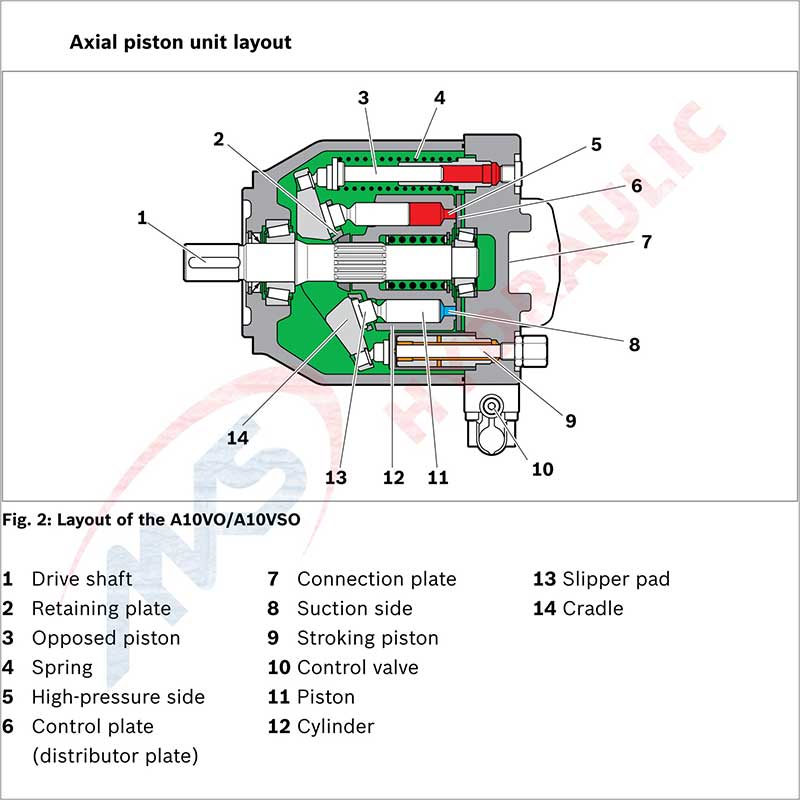

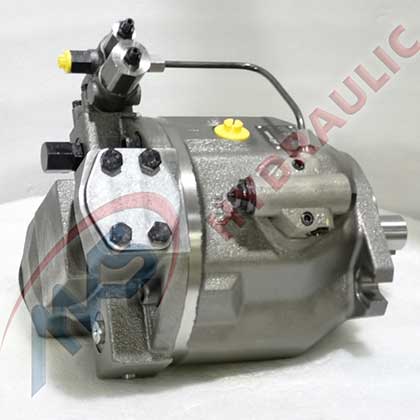

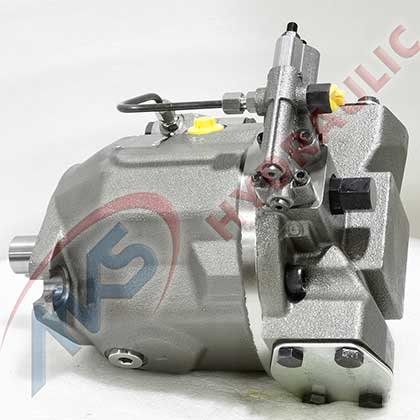

Variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuit.
The flow is proportional to the drive speed and displacement.
The flow can be infinitely varied by adjusting the swashplate angle.
2 drain ports.
Excellent suction performance.
Low noise level.
Long service life.
Favorable power/weight ratio.
Versatile controller range.
Short control time.
The through drive is suitable for adding gear pumps and axial piston pumps up to the same size, i.e., 100% through drive.
